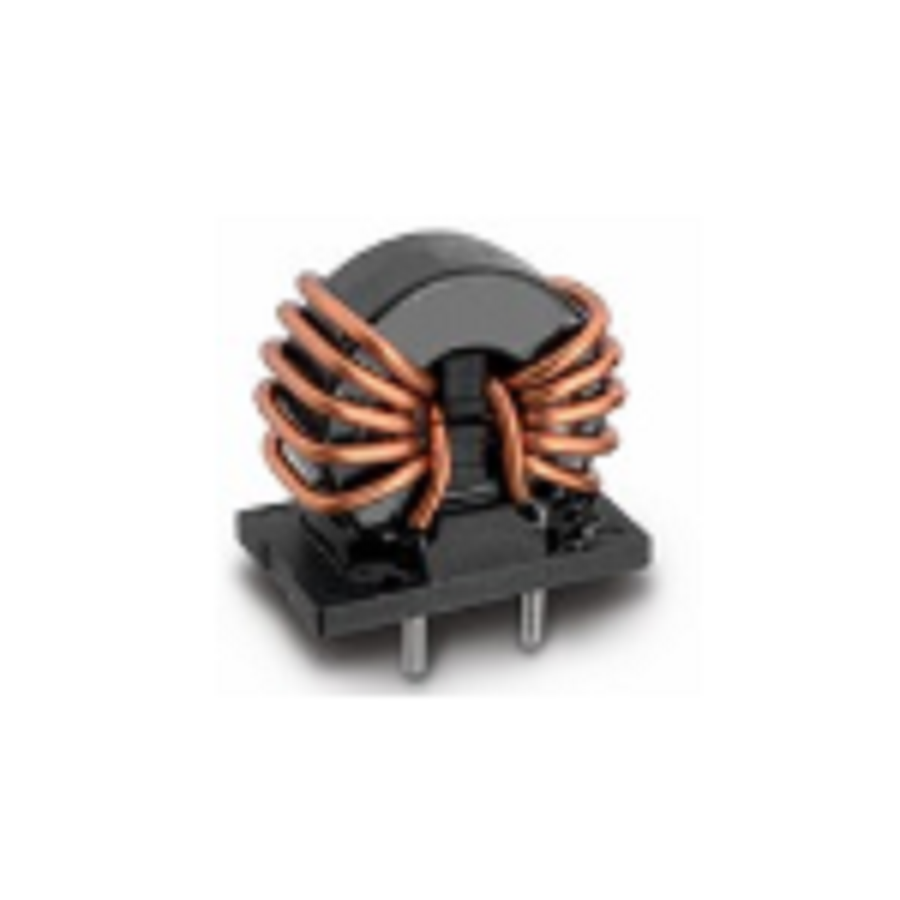

7448051804
Manufacturer:
Wurth Electronics
Mfr.Part #:
7448051804
Datasheet:
Description:
Common Mode Chokes Through Hole Max Current Rating:18 A Number of Lines:2 4.2 mΩ 4.5 mH
| Parameter | Value |
|---|---|
| Tolerance | 50 % |
| Length | 35.9918 mm |
| Width | 23.0124 mm |
| Termination | Through Hole |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Height | 35.9918 mm |
| Packaging | Bulk |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Type | Power Line Choke |
| Current Rating | 18 A |
| DC Resistance (DCR) | 4.2 mΩ |
| Max Current Rating | 18 A |
| Test Frequency | 10 kHz |
| Shielding | Unshielded |
| Number of Lines | 2 |
| Inductance | 4.5 mH |
| Max DC Current | 18 A |
Stock: 53
Distributors
pcbx
pcbxUnit Price$8.64847
Ext.Price$8.64847
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $8.64847 | $8.64847 |
| 10 | $8.64248 | $86.42480 |
| 25 | $8.00170 | $200.04250 |
| 50 | $7.40843 | $370.42150 |
| 100 | $6.85910 | $685.91000 |
